ESDA12-1K

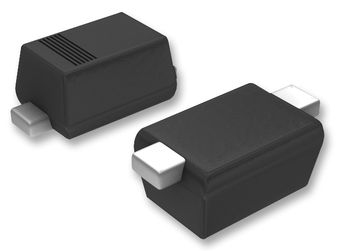

TVS Diode, ESDA1, 10 V, 16.5 V, SOD-523, 2 Pins

Click image to enlarge
ESDA12-1K
  • ESDA12-1K
Manufacturer:STMicroelectronics
Product Category: Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: ESDA12-1K
Secondary Manufacturer Part#: ESDA12-1K
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

The ESDA-1K is a single line Transil diode designed specifically for the protection of integrated circuits in portable equipment and miniaturized electronics devices subject to ESD and EOS transient overvoltages.

  • Breakdown voltage: 12 V, 18 V
  • Unidirectional device
  • High peak power dissipation: 450 W (8/20 µs waveform)
  • ESD protection level better than IEC 61000-4-2 level 4: 30 kV contact discharge.
  • Low leakage current < 0.5 µA at 5 V
  • PCB area: 1.3 mm2
  • Benefits
  • High EOS and ESD protection level
  • High integration
  • Suitable for high density board
  • Small package
  • Complies with the following standards
  • IEC 61000-4-2 level 4
  • 15 kV (air discharge)
  • 8 kV (contact discharge)
  • MIL STD 883G - Method 3015-7 Class 3B
  • HBM (Human Body Model): = 8 kV
    • "

    Technical Attributes

    Find Similar Parts

    		 Description Value
    		12 V
    		150 pF
    		28 V
    		SOD-523
    		Unidirectional
    		Surface Mount
    		1
    		2
    		1
    		150 °C
    		-40 °C
    		10 V
    		450 W
    		ESDA-1K Series
    		500 nA
    		10 V
