E-TDA7375V

Audio Amp Speaker 2-CH Stereo/4-CH Stereo 40W Class-AB 15-Pin(15+Tab) MULTIWATT V Tube

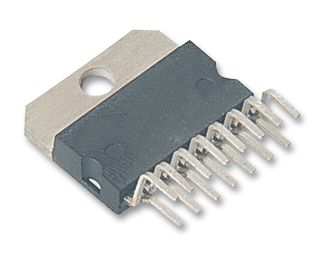

Click image to enlarge
E-TDA7375V
  • E-TDA7375V
Manufacturer:STMicroelectronics
Product Category: Amplifiers & Comparators, Audio Power Amplifiers
Avnet Manufacturer Part #: E-TDA7375V
Secondary Manufacturer Part#: E-TDA7375V
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

The TDA7375AV is a technology class AB car radio amplifier able to work either in dual bridge or quad single ended configuration.The exclusive fully complementary structure of the output stage and the internally fixed gain guarantee the highest possible power performances with extremely reduced component count.The on-board clip detector simplifies gain compression operation. The fault diagnostics makes it possible to detect mistakes during car radio set assembly and wiring in the car.

  • High output power capability
  • 2 x 43 W max./4 O
  • 2 x 37 W/4 O EIAJ
  • 2 x 26 W/4 O @14.4 V, 1 kHz, 10 %
  • 4 x 7 W/4 O @14.4 V, 1 kHz, 10 %
  • 4 x 12 W/2 O @14.4 V, 1 kHz, 10 %
  • Minimum external components count:
  • No bootstrap capacitors
  • No Boucherot cells
  • Internally fixed gain (26 dB BTL)
  • Standby function (CMOS compatible)
  • No audible pop during standby operations
  • Diagnostics facility for:
  • Clipping
  • Out to GND short
  • Out to VSshort
  • Soft short at turn-on
  • Thermal shutdown proximity
  • Protections:
  • Output AC/DC short circuit: to GND, to VS and across the load
  • Soft short at turn-on
  • Overrating chip temperature with soft thermal limiter
  • Load dump voltage surge
  • Very inductive loads
  • Fortuitous open GND
  • Reversed battery
  • ESD

    • Technical Attributes

    Find Similar Parts

    		 Description Value
    		Class-AB
    		Speaker
    		Single
    		Tin
    		4 Ohm
    		36000 mW
    		Through Hole
    		-40 to 150 °C
    		4500 mA
    		Differential|Single-Ended
    		2-Channel Stereo|4-Channel Stereo
    		15MULTIWATT V
    		15
    		Single Supply
    		19.6 x 5 x 10.7 mm
    		No
    		Multiwatt V
    		8V to 18V
    		0.03@4Ohm@10W %
    		40x2@4Ohm|12x4@2Ohm W
    		26 dB
