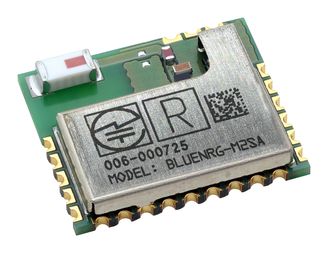

BLUENRG-M2SA
Bluetooth Module, BLE 5.2, -85 dBm, 1.7 V to 3.6 V Supply, -40 °C to 85 °C
-
RoHS 10 Compliant -
Tariff Charges
BLUENRG-M2SA is a Bluetooth® low energy system-on-chip application processor certified module, compliant with BT specifications v5.0 and BQE qualified. The BLUENRG-M2SA module supports multiple roles simultaneously. The BLUENRG-M2SA is based on BlueNRG-2 system-on-chip and entire Bluetooth Low Energy stack and protocols are embedded into module. The BLUENRG-M2SA module provides a complete RF platform in a tiny form factor. Radio, embedded antenna and high frequency oscillators are integrated to offer a certified solution to optimize the time to market of the final applications. The BLUENRG-M2SA can be powered directly with a pair of AAA batteries or any power source from 1.7 to 3.6V.
- Based on BlueNRG-2, BLE SoC
- UART, I2C, SPI, GPIO, timer, ADC, watchdog & RTC, DMA controller, PDM processor, SWD debug Interface
- On-board chip antenna
- Small form factor: 11.5mmx13.5mm
- Complemented with Bluetooth low energy protocol stack library (GAP, GATT, SM, L2CAP, LL)
- AES security co-processor
- Bluetooth low energy SDK with wide range of profile available
- Pre-programmed UART bootloader
- Operating temperature range from -40°C to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2.4GHz to 2.4835GHz |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
