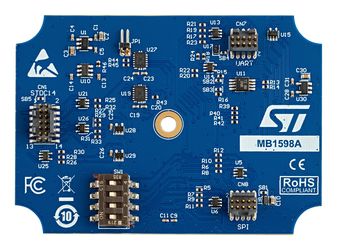

B-STLINK-VOLT

B-STLINK-VOLT is a Voltage adaptation board for STLINK-V3SET. This module can be enclosed directly in the original STLINK-V3SET casing when used as an STM32 debugging probe (JTAG/SWD/SWV/VCP) through the STDC14 connector. It can be inserted also between the STLINK-V3SET main board (MB1441) and its baseline adapter board (MB1440) when providing access to bridge signals and other connectors.

• 1.65V to 3.3V voltage adapter board for STLINK-V3SET
• Input/output level shifters for STM32 debug SWD, SWV and JTAG signals
• Input/output level shifters for VCP Virtual COM port (UART) signals
• Input/output level shifters for the bridge (SPI/UART/I2C/CAN/GPIOs) signals
• Closed casing when using the STDC14 connector (STM32 SWD, SWV and VCP)
• Compatible with the STLINK-V3SET adapter board (MB1440) for STM32 microcontrollers JTAG and bridge
• Operating temperature range from 0°C to 50°C
