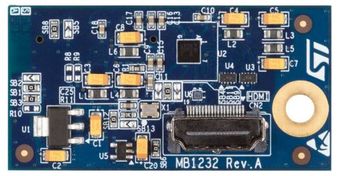

B-LCDAD-HDMI1
DSI to HDMI Adapter Board for STM32 Development Boards
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Kits & Tools, Hardware Development Tools
Avnet Manufacturer Part #: B-LCDAD-HDMI1
Secondary Manufacturer Part#: B-LCDAD-HDMI1
-
RoHS 10 Compliant -
Tariff Charges
The B-LCDAD-HDMI1 is a DSI to HDMI adapter board for STM32 development tools. It provides DSI input port and HDMI output port. It can be used on STM32 evaluation boards or discovery boards to demonstrate video solutions based on STM32 MCUs.
- Up to 4 lanes of MIPI/DSI data, each running up to 800Mbps (video mode only)
- 2 channels I2S transmits stereo up to 192KHz sampling rate
- S/PDIF carries stereo LPCM audio or compressed audio
- HDMI output connector, support of video resolutions with pixel clocks up to 80MHz
- Support of CEC signals, 5V tolerant I2C and HPD I/Os
- Common mode filters with ESD protection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Microcontroller Tools | ||
| Adapter Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Ships
in 1 bus. day
