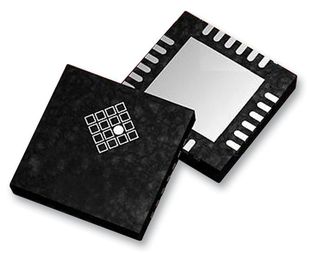

SX1230I066TRT

The SX1230I066 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915 MHz license free ISM bands.The transmitter has two modes of operation, a conventional MCU controlled mode and a ‘stand-alone’ mode which enables the SX1230I066 to download configuration and messages from an E2PROM in response to a user input. Stand-alone mode makes the SX1230I066 ideal for miniaturized or low cost remote keyless entry (RKE) applications. It also offers the unique advantage of narrow-band and wide-band communication in a range of modulation formats.The SX1230I066 offers high RF output power and channelized operation suited for the European (ETSI EN 300-220-1), North American (FCC part 15.231, 15.247 and 15.249) and Japanese (ARIB T-67) regulatory standards.

• +17 dBm to -18 dBm Programmable output power
• Bit rates up to 600 kbits / sec
• FSK, GFSK, MSK, GMSK and OOK modulation
• Stand-alone mode: No need for a host MCU
• Consistent RF performance over a 1.8 to 3.7 V range
• Low phase noise (-95 dBc/Hz at 50 kHz) with automated PLL calibration and fully integrated VCO and loop filter
• On chip RC timer for timer / wake-up applications
• Low battery detection.
