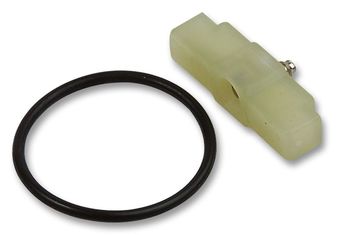

0098.9201

Name: 0098.9201
Brand: SCHURTER
SKU: 0098.9201
Availability: InStock

Click image to enlarge

Manufacturer:SCHURTER

Product Category: Electromechanical, Switches, Switch Accessories

Avnet Manufacturer Part #: 0098.9201

Secondary Manufacturer Part#: 0098.9201

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Operating Temperature	-25 to 60 °C

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8538904000
Schedule B:	8538907020

In Stock : 19.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 77 Weeks

Price for: Each

Quantity:

Min:100 Mult:100

USD $:

100+

$1.33467

200+

$1.3085

400+

$1.28995

800+

$1.27192

1600+

$1.25125
