MUSBR-05-F-O-B-SM-A

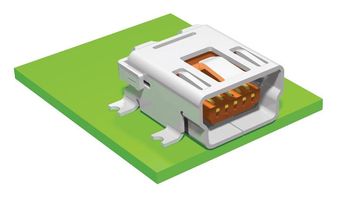

USB Connector, Mini USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount, Right Angle
Click image to enlarge
Manufacturer:Samtec
Product Category:
Connectors, USB, USB Connectors
Avnet Manufacturer Part #: MUSBR-05-F-O-B-SM-A
Secondary Manufacturer Part#: MUSBR-05-F-O-B-SM-A
-
RoHS 10 Compliant -
Tariff Charges
The MUSBR-05-F-O-B-SM-A is a 5-pole High Retention Mini USB 2.0 Interface Jack with gold-plated phosphor series contacts and high temperature thermoplastic insulator. The MUSBR series mini USB 2.0 interface jack has surface mount and type-A connector.
- Orange colour
- -50 to +85°C Operating temperature range
- 30Vrms Voltage rating
- 50mO Contact resistance
- 1500 Minimum cycles
- Lead-free solderable
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Phosphor Bronze | ||
| Gold | ||
| Receptacle | ||
| Surface Mount | ||
| MUSBR | ||
| USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694030 |
Ships
in 1 bus. day
