CC79L-2024-01-S
Contact, CC79, Socket, Crimp, 20 AWG, Gold Plated Contacts, IPD1 Series Connectors
Click image to enlarge
Manufacturer:Samtec
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: CC79L-2024-01-S
Secondary Manufacturer Part#: CC79L-2024-01-S
-
RoHS 10 Compliant -
Tariff Charges

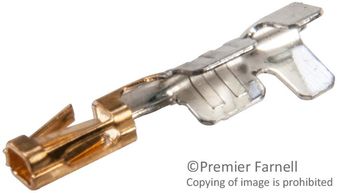

The CC79L-2024-01-S is a Socket Contact made of phosphor bronze with gold plated finish. The miniMate® crimp contact accepts 24 to 20AWG wire. It mates with the IPD1 series discrete wire housings.
- 20 to 30 AWG PVC cable
- 24 to 30 AWG Teflon cable
- Assembly tooling available
- Loose contacts
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Wire to Board Housing | ||
| Phosphor Bronze | ||
| Gold Over Nickel | ||
| Signal | ||
| Socket | ||
| Tin Over Nickel | ||
| 4.8 A | ||
| Cable Mount | ||
| 0.762 um | ||
| CC79L | ||
| No | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
