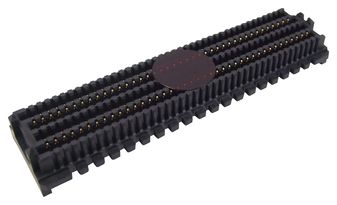

ASP-134606-01
Mezzanine Connector, Array, Male, 1.27 mm, 4 Rows, 160 Contacts, Surface Mount, Copper Alloy
Click image to enlarge
Manufacturer:Samtec
Product Category:
Connectors, PC Board Connectors, Board to Board Connectors
Avnet Manufacturer Part #: ASP-134606-01
Secondary Manufacturer Part#: ASP-134606-01
-
RoHS 10 Compliant -
Tariff Charges
The ASP-134606-01 is a 160-pole 4-row 1.27mm Male FMC Connector with gold-plated copper alloy contacts. The VITA 57 Field Programmable Mezzanine Card (FMC) standard provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured, via mezzanine boards.
- 8.5mm Stack height
- Lead-free solder
- Low pin count
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Black | ||
| Through Hole | ||
| 1.2700 mm | ||
| 55.78 x 14.68 x 5.61 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
