PS2915-1-F3-AX
Optocoupler, 1 Channel, Mini-Flat, 4 Pins, 50 mA, 2.5 kV, 100 %

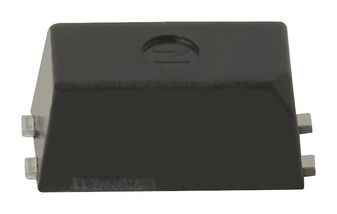

Click image to enlarge
Manufacturer:Renesas Electronics
Product Category:
Optoelectronics, OptoCouplers, Transistor & Photovoltaic Output PhotoCouplers
Avnet Manufacturer Part #: PS2915-1-F3-AX
Secondary Manufacturer Part#: PS2915-1-F3-AX
-
RoHS 10 Compliant -
Tariff Charges
The PS2915-1 is an optically coupled isolator containing GaAs light emitting diodes and an NPN silicon phototransistor in one package for high density mounting applications. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30%, compared.
- Ultra small flat-lead package (4.6 (L) × 2.5 (W) × 2.1 (H) mm)
- High current transfer ratio (CTR = 200% TYP. @ If = ±1 mA, Vce = 5 V)
- High isolation voltage (BV = 2500 Vrms.)
- Ordering number of taping product: PS2915-1, 50 pcs (Tape 50 pcs cut)
- Safety standards
- UL approved: No. E72422
- BSI approved (BS EN 60065, BS EN 60950)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 500 mA | ||
| Gold over Nickel Palladium | ||
| 260 | ||
| 40 mA | ||
| 40 V | ||
| 400@1mA % | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| -55 to 100 °C | ||
| DC | ||
| 4Mini Flat | ||
| 4 | ||
| 2.5 x 4.6 x 2.1 | ||
| Mini Flat |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541498000 |
| Schedule B: | 8541498000 |
