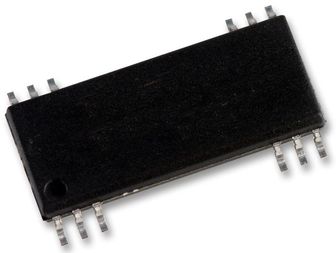

PS2841-4B-F3-AX

The PS2841-4B are optically coupled isolators containing GaAs light emitting diodes and NPN silicon phototransistors. These products include four channels in a single package for high-density mounting applications. The PS2841-4B are the world's smallest class of photo couplers and realize about 50% reduction in mounting area compared.

• Ultra small and thin package (12-pin ultra shrink SOP, Pin pitch 0.8 mm, 4.4 (L) × 5.6 (W) × 2.5 (H))
• Common lead PS2841-4B: anode, collector common
• High current transfer ratio (CTR = 200% TYP. @ If = 1mA)
• High isolation voltage (BV = 1500 Vrms.)
• Pb-Free product
• Ordering number of tape product: PS2841-4B : 2500 pcs/reel
• Safety standards
  • UL approved: File No. E72422
