NP109N055PUK-E1-AY

Name: NP109N055PUK-E1-AY
Brand: Renesas Electronics
SKU: NP109N055PUK-E1-AY
Availability: InStock

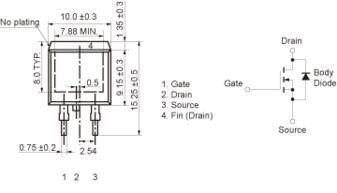

Click image to enlarge

Manufacturer:Renesas Electronics

Product Category: Discretes, FETs, Single MOSFETs

Avnet Manufacturer Part #: NP109N055PUK-E1-AY

Secondary Manufacturer Part#: NP109N055PUK-E1-AY

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Channel Type	N
	Continuous Drain Current Id	110
	Drain Source On State Resistance	2.2@10V
	Drain Source Voltage Vds	55
	No. of Pins	3
	Operating Temperature Max	175 °C

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541290040
Schedule B:	8541290040

In Stock : 0

Additional inventory

Factory Lead Time: 126 Weeks

Price for: Each

Quantity:

Min:800 Mult:800

USD $:

800+

$1.82143

1600+

$1.72297
