KAD5512P-17Q72

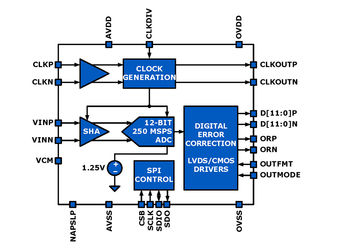

The KAD5512P-21 is the low-power member of the KAD5512 family of 12-bit analog-to-digital converters. Designed with Intersil’s proprietary FemtoCharge technology on a standard CMOS process, the family supports sampling rates of up to 250 MSPS. The KAD5512P-21 is part of a pin-compatible portfolio of 10, 12 and 14-bit A/Ds with sample rates ranging from 125MSPS to 500MSPS. Digital output data is presented in selectable LVDS or CMOS formats. The KAD5512P-21 is available in 72- and 48-contact QFN packages with an exposed paddle. Operating from a 1.8V supply, performance is specified over the full industrial temperature range (-40°C to +85°C).

• Half the Power of the Pin-Compatible KAD5512HP Family
• 1.5GHz Analog Input Bandwidth
• 60fs Clock Jitter
• Programmable Gain, Offset and Skew Control
• Over-Range Indicator
• Selectable Clock Divider: ÷1, ÷2 or ÷4
• Clock Phase Selection
• Nap and Sleep Modes
• Two’s Complement, Gray Code or Binary Data Format
• SDR/DDR LVDS-Compatible or LVCMOS Outputs
• Programmable Built-in Test Patterns
• Single-Supply 1.8V Operation
• Pb-Free (RoHS Compliant)
