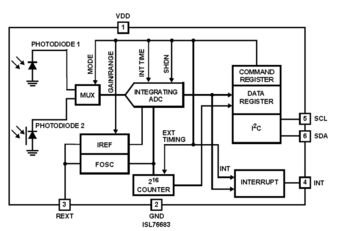

ISL76683EVAL1Z

Light-to-Digital Output Sensor with Gain Selection, Interrupt Function and I2C Interface

Range select via I2C - Range 1 = 0 lux to 1000 lux - Range 2 = 0 lux to 4000 lux - Range 3 = 0 lux to 16,000 lux - Range 4 = 0 lux to 64,000 lux • Human eye response (540nm peak sensitivity) • Temperature compensated • 16-bit resolution • Adjustable sensitivity: up to 65 counts per lux • User-programmable upper and lower threshold interrupt • Simple output code, directly proportional to lux • IR + UV rejection • 50Hz/60Hz rejection • 2.5V to 3.3V supply • 6 Ld ODFN (2.1mmx2mm) • AEC-Q100 qualified • Pb-free (RoHS compliant)
