ISL29033IROZ-T7
Light to Digital Ambient Light Sensor Digital (I2C)-OUT 0.0019lux to 8000lux 6-Pin ODFN-EP T/R
-
RoHS 10 Compliant -
Tariff Charges

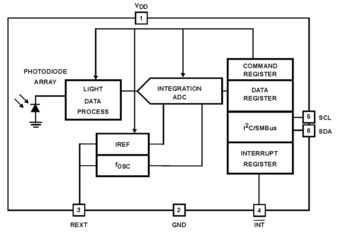

The ISL29033 is an integrated ambient and infrared light to digital converter with I2C (SMBus Compatible) interface. Its advanced, self-calibrated photodiode array emulates human eye response with excellent IR rejection. The on-chip 16-bit ADC is capable of rejecting 50Hz and 60Hz flicker caused by artificial light sources. The lux range select feature allows users to program the lux range for optimized counts/lux. Power consumption can be reduced to less than 0.3µA when powered down. Designed to operate on supplies from 2.25V to 3.63V with an I2C supply from 1.7V to 3.63V, the ISL29033 is specified for operation over the -40°C to +85°C ambient temperature range.
- Ambient light sensing
- Simple output code directly proportional to Lux
- Variable conversion resolution up to 16 bits
- Adjustable sensitivity up to 520 counts per Lux
- Measurement range: 0.0019 to 8,000lux with four selectable ranges
- Program interrupt feature
- 6 Ld 2.0mm x 2.1mm x 0.7mm ODFN package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 6 | ||
| 85 °C | ||
| -40 °C | ||
| I2C | ||
| ODFN-EP | ||
| Surface Mount | ||
| Digital Ambient Light Sensor | ||
| 3.63 | ||
| 2.25 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390090 |
| Schedule B: | 8542390060 |
Factory Lead Time:
