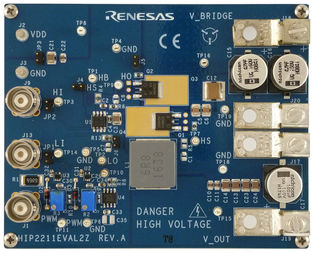

HIP2211EVAL2Z
Evaluation Kit for MOSFET and Power Driver 4A Single Hi/Lo Side
Click image to enlarge
Manufacturer:Renesas Electronics
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: HIP2211EVAL2Z
Secondary Manufacturer Part#: HIP2211EVAL2Z
-
RoHS 10 Compliant -
Tariff Charges
- HIP2211 8 lead SOIC evaluation board
- 3A source and 4A sink NMOS gate drivers
- Internal level shifter and bootstrap diode for gate driver on high-side NFET
- Up to 100V high-side bootstrap reference
- 6V to 18V bias supply operation
- Fast 15ns typical propagation delay and 2ns typical propagation delay match supports 1MHz operation
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8473301180 |
| Schedule B: | 8473300002 |
Factory Lead Time:
