HIN202ECBZ-T

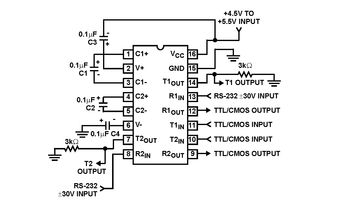

HIN202ECBZ-T is a ±15kV, ESD-protected, +5V powered, RS-232 transmitter/receiver interface circuit meets all ElA high-speed RS-232E and V.28 specifications, and is particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (electrostatic discharge). It is ideally suitable for any system requiring high-speed RS-232 communications port : computer - portable, mainframe, laptop, peripheral - printers and terminals, instrumentation, UPS, modems, ISDN terminal adaptors.

• High speed ISDN compatible is 230kbits/s
• ESD protection for RS-232 I/O pins to ±15kV (IEC61000)
• Requires only 0.1µF or greater external capacitors
• Requires only single +5V power supply
• Onboard voltage doubler/inverter, three-state TTL/CMOS receiver outputs
• 2 number of RS-232 drivers, 2 number of RS-232 receivers
• Output voltage swing is ±9V typ at transmitter outputs, 3kohm to ground
• Output resistance is 300 ohm minimum at VCC=V+=V-=0V, VOUT=±2V
• 16 Ld SOIC (W) package
• Temperature range from 0 to 70°C
