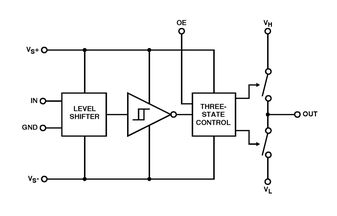

EL7156CSZ-T7

Name: EL7156CSZ-T7
Brand: Renesas Electronics
SKU: EL7156CSZ-T7
Availability: InStock

Click image to enlarge

Manufacturer:Renesas Electronics

Product Category: Power Management, Drivers & Controllers, Gate Drivers

Avnet Manufacturer Part #: EL7156CSZ-T7

Secondary Manufacturer Part#: 84AC6604

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	IC Case / Package	SOIC
	IC Mounting	Surface Mount
	No. of Pins	8
	Operating Temperature	-40 to 85 °C
	Product Dimensions	4.9 x 3.9 x 1.45 mm

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8542390050
Schedule B:	8542390060

In Stock : 0

Additional inventory

Factory Lead Time: 108 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:

$11.14

10+

$8.62

25+

$8.0

50+

$7.65

100+

$7.3

250+

$6.97

500+

$6.77
