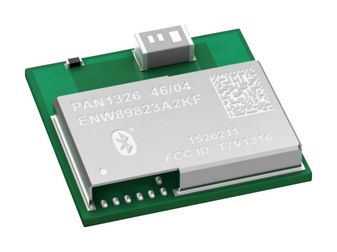

ENW-89823A3KF

The PAN1326B Series Modules has increased system and power efficiency resulting from reduced initialization script size, start-up time and decreased system memory requirements;supports ten simultaneous BLE connections -- increased from six -- and integrated SBC encoding and decoding for A2DP implementations, eliminating the requirement for an external CODEC. Panasonic’s tiny footprint technology offers a module of only 85.5 mm2 including antenna. The modules are designed to accommodate PCBs pad pitch of 1.3mm and as little as two layers for easy implementation and manufacture. The Bluetooth Low Energy (BLE) standard is designed to reduce power consumption by establishing very fast connections (few ms) and transferring small amounts of data. Using these techniques, energy consumption is reduced to a tenth of a Classic Bluetooth device. Bluetooth Smart Ready devices can communicate with both Bluetooth Classic and Bluetooth Low Energy devices. Smart Ready devices take advantage of the data rate of Bluetooth Classic (3Mb/s) and ultra fast connection time of Bluetooth Low Energy (3mS).

• PAN1326B module with CC2564B dual mode Bluetooth® controller
• Bluetooth specification v2.1 + EDR (enhanced data rate)
• Surface mount type 6.5 (9.5 with antenna) x 9 x 1.8mm³
• High sensitivity (-93dBm typ)
• Fast connection set-up, extended SCO link
• Supports convenient direct connection to battery (2.2-4.8V) or connect to DC/DC (1.7-1.98V)
• Internal crystal oscillator (26MHz), fully shielded for immunity
• Support for Bluetooth power saving modes (sniff, hold)
• Full 8 to 128bit encryption, UART, I2C and PCM Interface
• Operating temperature range from -40°C to +85°C
