AXK6S30647YG
MATAXK6S30647YG

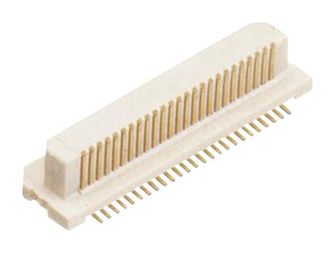

Click image to enlarge
Manufacturer:Panasonic
Product Category:
Connectors, PC Board Connectors, Board to Board Connectors
Avnet Manufacturer Part #: AXK6S30647YG
Secondary Manufacturer Part#: AXK6S30647YG
-
RoHS 10 Compliant -
Tariff Charges
- Two-piece structure and 0.5mm pitch.
- The product lineup includes mated heights of 1.5mm, 2.0mm and 2.5mm.
- Strong resistance to adverse environments! Utilizes tough contact construction for high contact reliability
- Simple lock structure provides tactile feedback to ensure excellent mating/unmating operation feel
- Effective mating length 0.55mm
- In addition to achieving a low profile of 1.5mm between PCBs, the effective mating length has been extended to ensure that there is latitude for insertion
- The lower connector bottom surface construction prevents contact and shorts between the PCB and metal terminals. Benfits include freedom in pattern wiring, helping to make PCB’s smaller
- Gull-wing-shaped terminals to facilitate visual inspections.
- Connectors for inspection available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Resin | ||
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Header | ||
| 80 mOhm | ||
| Surface Mount | ||
| 30 POS | ||
| 2 | ||
| -55 to 85 °C | ||
| Emboss T/R | ||
| 0.5000 mm | ||
| 4.2 mm | ||
| 5.3 mm | ||
| 10.7 mm | ||
| Solder | ||
| Board to Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
