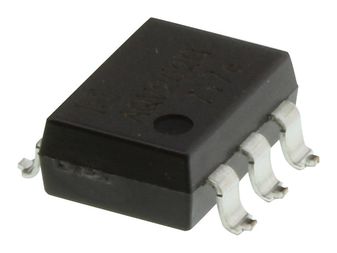

AQV252GA
Relay SSR 50mA 1.5V DC-IN 2.5A 60V AC/DC-OUT 6-Pin DIP SMD
Click image to enlarge
Manufacturer:Panasonic
Product Category:
Electromechanical, Relays, Solid State Relays
Avnet Manufacturer Part #: AQV252GA
Secondary Manufacturer Part#: AQV252GA
-
RoHS 10 Compliant -
Tariff Charges
The AQV252GA is a Solid State Relay with SPST-NO contact and surface-mount terminals. This AQV-series PhotoMOS® HE 1-form-A high capacity relay with greatly improved specifications allow you to use this in place of mercury and mechanical relays.
- 650mW Power dissipation
- 5ms Turn-on and 0.5ms Turn-off Maximum time
- -40 to 85°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1 Form A | ||
| 500 mA | ||
| DC | ||
| 1.5 V | ||
| 1,500 Vrms | ||
| Surface Mount | ||
| -40 to 85 °C | ||
| 2.5 A | ||
| MOSFET | ||
| AC|DC | ||
| 60 V | ||
| 6SMD DIP | ||
| 6 | ||
| 8.8 x 6.4 x 3.6 mm | ||
| 0 | ||
| AQV | ||
| SMD DIP | ||
| Gull Wing |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542310075 |
| Schedule B: | 8542310075 |
Ships
in 1 bus. day
