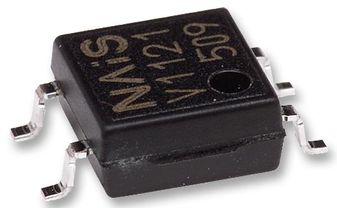

APV1121S
MOSFET Relay, 14 µA, 2.5 kV, 50 mA
Click image to enlarge
Manufacturer:Panasonic
Product Category:
Optoelectronics, OptoCouplers, Transistor & Photovoltaic Output PhotoCouplers
Avnet Manufacturer Part #: APV1121S
Secondary Manufacturer Part#: APV1121S
-
RoHS 10 Compliant -
Tariff Charges
The APV1121S is a Solid State Relay with surface-mount terminals. This relay features high-speed switching, space saving with a built-in control circuit, an external resistor is not needed. This contributes to making substrates more compact. Photovoltaic MOSFET drivers of wide variation.
- High insulation
- Extensive product line-up
- 6V Drop-out voltage
- 75mW Power dissipation
- 0.4ms Turn-on and 0.1ms turn-off typical time
- -40 to 85°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.1 ms | ||
| 1.5 V | ||
| 30 mA | ||
| 2500 Vrms | ||
| Surface Mount | ||
| 1 | ||
| -40 to 85 °C | ||
| DC | ||
| 4SOP | ||
| 4 | ||
| 4.3 x 4.4 x 2 mm | ||
| 5 V | ||
| Industrial | ||
| SOP | ||
| 0.4 ms |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542310075 |
| Schedule B: | 8542310075 |
