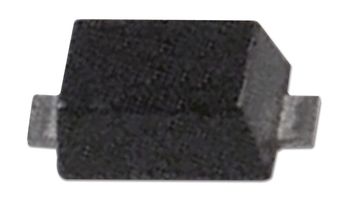

SZMM5Z3V9T1G

Name: SZMM5Z3V9T1G
Brand: onsemi
SKU: SZMM5Z3V9T1G
Availability: InStock

Click image to enlarge

Manufacturer:onsemi

Product Category: Discretes, Diodes & Rectifiers, Zener Diodes

Avnet Manufacturer Part #: SZMM5Z3V9T1G

Secondary Manufacturer Part#: SZMM5Z3V9T1G

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Diode Case Style	SOD-523
	Diode Mounting	Surface Mount
	No. of Pins	2
	Operating Temperature Max	150 °C
	Power Dissipation	500 W
	Product Range	SZMM5ZxxxT1G Serie
	Qualification	AEC-Q101
	Zener Voltage Nom	3.9 V

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100050
Schedule B:	8541100050

In Stock : 0

Additional inventory

Factory Lead Time: 280 Weeks

Price for: Each

Quantity:

Min:6000 Mult:3000

USD $:

6000+

$0.15471

12000+

$0.14635

24000+

$0.1425

48000+

$0.13885

96000+

$0.13538
