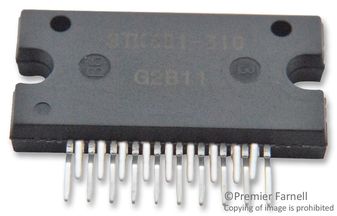

STK681-310
Forward/Reverse Motor Driver 5V/NV/AV 19-Pin ZIP
Click image to enlarge
Manufacturer:onsemi
Product Category:
Power Management, Drivers & Controllers, Motor Drivers / Controllers
Avnet Manufacturer Part #: STK681-310
Secondary Manufacturer Part#: STK681-310
-
RoHS 10 Compliant -
Tariff Charges
STK681-310 is a forward/reverse motor driver thick film hybrid IC. It is designed for current control of DC brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 4.2A and the peak brake output current is 8A. It have current sensing resistor built-in, and we can space-saving design easily. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.
- Built-in current sensing resistor
- Built-in over-heat protection
- Built-in over-current protection
- No need for dead time design
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Forward/Reverse IPM | ||
| Matte Tin | ||
| 4 mA | ||
| Through Hole | ||
| 2 | ||
| 19 | ||
| 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 4.2 A | ||
| 52 V | ||
| 19ZIP | ||
| 19 | ||
| 29.2 x 4.5 x 14.4 mm | ||
| ZIP | ||
| 42 V | ||
| 10 V | ||
| Forward/Reverse Motor Driver |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330001 |
