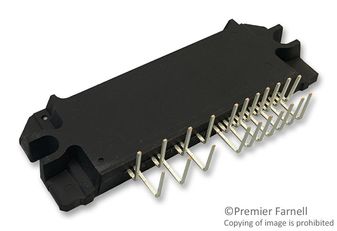

STK554U392C-E

Fully integrated inverter power stage consisting of a high voltage driver, six IGBT’s and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors. The IGBT’s are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. The power stage has a full range of protection functions including cross--conduction protection, external shutdown and under-voltage lockout functions. Output stage uses IGBT/FRD technology and implements undervoltage protection (UVP) and overcurrent protection with a fault detection output flag. Internal boost diodes are provided for high side gate boost drive. Typical applications include industrial pumps/fans, industrial automation, heat pumps and home appliances.

• Three-phase 15A/600V IGBT module with integrated drivers
• Typical values: VCE(sat) = 1.7V, VF = 1.9V
• 62mm x 21.8mm single in-line package with vertical LF type
• Cross-conduction protection
• Integrated bootstrap diodes and resistors
• UL1557 (file number : E339285)
• All IGBT Gate shutdown at abnormal for safety
• System malfunction can reduce by noise
• High precision monitor is possible
• No need photo-coupler design
