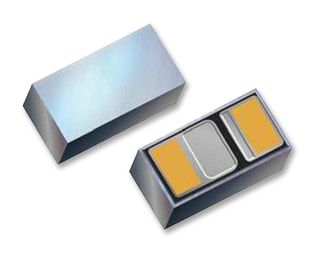

NSR05F40NXT5G

Name: NSR05F40NXT5G
Brand: onsemi
SKU: NSR05F40NXT5G
Availability: InStock

Click image to enlarge

Manufacturer:onsemi

Product Category: Discretes, Diodes & Rectifiers, Small Signal Schottky Diodes

Avnet Manufacturer Part #: NSR05F40NXT5G

Secondary Manufacturer Part#: NSR05F40NXT5G

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	500
	Diode Case Style	DSN
	Diode Configuration	Single
	Diode Mounting	Surface Mount
	Forward Surge Current	10
	Forward Voltage Max	460
	No. of Pins	2
	Operating Temperature Max	150 °C
	Repetitive Peak Reverse Voltage	40

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100040
Schedule B:	8541100080

In Stock : 125000.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 140 Weeks

Price for: Each

Quantity:

Min:5000 Mult:5000

USD $:

5000+

$0.0924

10000+

$0.0888

20000+

$0.0852

40000+

$0.0816

80000+

$0.0801
