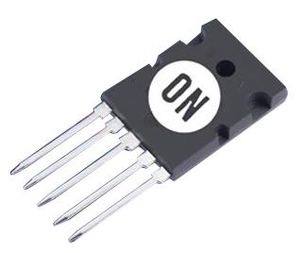

NJL1302DG
Bipolar Power Transistor, PNP, ThermalTrak™, 15 A, 260 V. ONSSPCTRNSTLT1T0R;
Click image to enlarge
Manufacturer:onsemi
Product Category:
Discretes, Bipolar Transistors, Single Bipolar Transistors
Avnet Manufacturer Part #: NJL1302DG
Secondary Manufacturer Part#: NJL1302DG
-
RoHS 10 Compliant -
Tariff Charges
The Bipolar Power Transistor has been designed to eliminate thermal equilibrium lag time and bias trimming in audio amplifier applications. It can also be used in other applications as a transistor die protection device.
- Thermally matched bias diode to eliminate thermal runaway
- Instant thermal bias tracking for superior sound quality
- Absolute Thermal Integrity
- High safe operating area
- Pb-Free Packages are Available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 260 | ||
| 75 | ||
| 5 | ||
| 150 °C | ||
| 200 | ||
| TO-264 | ||
| Through Hole | ||
| PNP | ||
| 30 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541290095 |
| Schedule B: | 8541290080 |
Ships
in 1 bus. day
