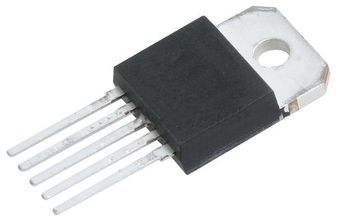

LM2576T-ADJG

Click image to enlarge

Manufacturer:onsemi

Product Category: Power Management, Voltage Regulators, DC / DC Switching Regulators

Avnet Manufacturer Part #: LM2576T-ADJG

Secondary Manufacturer Part#: 26K3602

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Efficiency	77 %
	IC Case / Package	TO-220
	IC Mounting	Through Hole
	Input Voltage Max	40 V
	Input Voltage Min	7 V
	Lead Finish	Matte Tin
	Max Processing Temp	260
	Maximum Input Voltage	40 V
	Minimum Input Voltage	7 V
	Mounting	Through Hole
	No. of Outputs	1
	No. of Pins	5
	Number of Outputs	1
	Operating Supply Voltage	1.8 V
	Operating Temperature	-40 to 125 °C
	Operating Temperature Max	125 °C
	Operating Temperature Min	-40 °C
	Output Current	3 A
	Output Current Max	3A A
	Output Type	Adjustable
	Output Voltage	1.23 to 37 V
	Output Voltage Max	37V V
	Output Voltage Min	1.23V V
	Package	5TO-220
	Pin Count	5
	Product Dimensions	10.54 x 4.57 x 9.27 mm
	Product Range	LM2576 Series
	Supplier Package	TO-220
	Switching Frequency	52 kHz
	Switching Frequency Typ	52 kHz
	Topology	Buck (Step Down)

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8542390050
Schedule B:	8542390060

In Stock : 0

Additional inventory

Factory Lead Time: 120 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:

1+

$2.47

10+

$1.82

100+

$1.43

500+

$1.33
