FUSB301TMX

The FUSB301 is a fully autonomous Type-C controller optimized for <15 W applications. The FUSB301 offers CC logic detection for Source Mode, Sink Mode, Dual Role Port Mode, accessory detection support, and dead battery support. The FUSB301 features an external switch pin (SS_SW) to enable an external USB Super Speed Switch without interrupting the processor. The FUSB301 features an extremely low power disable mode as well as low power during normal operation. It is available in an ultra thin, 10-Lead TMLP package.

• Fully Autonomous Type-C Controller
• Supports Type-C Version 1.1 and 1.0
• VDD Operating Range, 3.0 V- 5.5 V
• Low Disable Power: ICC = 2 µA (Max.)
• Low Standby Power: ICC = 7 µA (Max.)
• Dual Role Port Mode with Optional Accessory Support
• Capable of Supporting Try.SNK and Try.SRC
• Super Speed Switch Control
• Dead Battery Support (Sink Mode Support when No Power Applied)
• 2 kV HBM ESD Protection

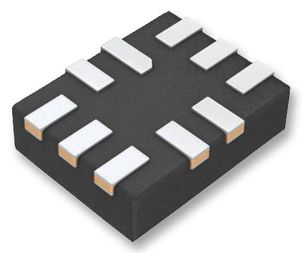

• Small Packaging, 10 Lead TMLP(1.6 mm x 1.2 mm x 0.375 mm)
