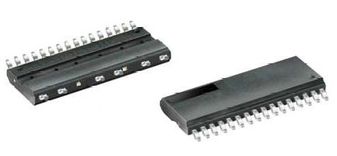

FSB50450S

The FSB50450S is an advanced Motion SPM® 5 Module provides a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in MOSFETs (FRFET® technology) to minimize EMI and losses. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms.

• Separate open-source pins from low-side MOSFETs for three-phase current-sensing
• Active-high interface, works with 3.3/5V logic, Schmitt-trigger input
• Optimized for low electromagnetic interference
• HVIC for gate driving and under-voltage protection
• 1500Vrms/minute Isolation rating
• Moisture sensitive level (MSL) 3
