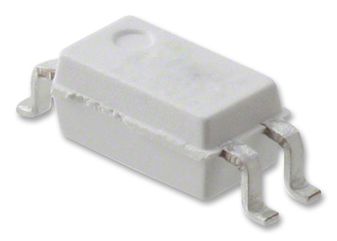

FODM8801C
Optocoupler, 1 Channel, SSOP, 4 Pins, 20 mA, 3.75 kV, 200 %
Click image to enlarge
Manufacturer:onsemi
Product Category:
Optoelectronics, OptoCouplers, Transistor & Photovoltaic Output PhotoCouplers
Avnet Manufacturer Part #: FODM8801C
Secondary Manufacturer Part#: FODM8801C
-
RoHS 10 Compliant -
Tariff Charges
The OptoHiT FODM8801 is a first-of-its-kind phototransistor, utilizing Fairchild’s leading-edge, proprietary process technology to achieve high operating temperature characteristics, up to 125°C. The optocoupler consists of an aluminum gallium arsenide (AlGaAs) infrared light emitting diode (LED) optically coupled to a phototransistor, in a compact half pitch, mini-flat, 4-pin package. It delivers high current transfer ratio at very low input current. The input-output isolation voltage, VISO, is rated at 3750 VACRMS.
- Utilizing proprietary process technology to achieve high operating temperature up to 125°C
- Guaranteed Current Transfer Ratio (CTR) specifications across full temperature range
- Excellent CTR Linearity at High-Temperature
- CTR at very low input current, IF
- High isolation voltage regulated by safety agency, UL1577, 3750 VAC RMS for 1 min. and DIN EN/IEC60747-5-2 (pending approval)
- Compact half pitch, mini-flat, 4-pin package (1.27mm lead pitch, 2.4mm maximum standoff height)
- > 5mm creepage and clearance distance
- Applicable to Infrared Ray reflow, 245°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5.5 us | ||
| 1.35 V | ||
| 200 mA | ||
| Matte Tin | ||
| 260 °C | ||
| 30 mA | ||
| 75 V | ||
| 400@1mA % | ||
| 3.75 Vrms | ||
| Surface Mount | ||
| 1 | ||
| 1 | ||
| -40 to 125 to 110 °C | ||
| Open Collector | ||
| 4Mini-Flat | ||
| 4 | ||
| 2.5 x 4.4 x 2.11 mm | ||
| 6 V | ||
| Extended Industrial | ||
| Mini-Flat | ||
| 5 us |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541498000 |
| Schedule B: | 8541498000 |
