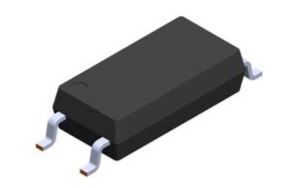

FODM1008

FODM1008 is a FODM100x series single channel, DC sensing input, phototransistor optocoupler. The FODM100x series, single channel, DC sensing input, optocoupler consists of one gallium arsenide (GaAs) infrared light emitting diode optically coupled to one phototransistor, in a stretched body SOP 4-pin package. The input-output isolation voltage, VISO, is rated at 5,000VACRMS. It has = 8mm creepage and clearance distance and = 0.4mm insulation distance to achieve reliable and high voltage insulation. Typical applications are primarily suited for DC-DC converters, ground loop isolation, signal noise isolation, communications – adapters, chargers, consumer - appliances, set-top boxes, industrial - power supplies, motor control, programmable logic control. Safety and Regulatory Approvals UL1577, 5,000VACRMS for 1min, DIN-EN/IEC60747-5-5, 890V-peak working voltage.

• High breakdown collector to emitter voltage, BVCEO = 70V minimum
• Extended industrial temperate range from -40 to 110°C
• Current transfer ratio is 130 to 260% at IF = 5mA, VCE = 5V, TA = 25°C
• Maximum working insulation voltage is 890Vpeak
• Insulation resistance at TS, VIO = 500V is >10^9ohm
• Operating temperature range from -40 to +110°C
• Input current is 200mA
• Output Power is 300mW
• SOP 4-pin package
