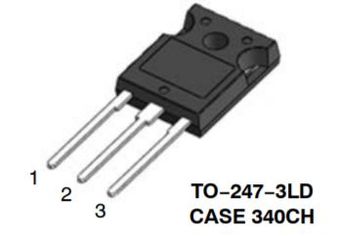

FFSH20120ADN-F085

Name: FFSH20120ADN-F085
Brand: onsemi
SKU: FFSH20120ADN-F085
Availability: InStock

Click image to enlarge

Manufacturer:onsemi

Product Category: Discretes, Diodes & Rectifiers, Silicon Carbide Schottky Diodes

Avnet Manufacturer Part #: FFSH20120ADN-F085

Secondary Manufacturer Part#: FFSH20120ADN-F085

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	30 A
	Diode Case Style	TO-247
	Diode Configuration	Dual Common Cathod
	Diode Mounting	Through Hole
	Operating Temperature Max	175 °C
	Qualification	AEC-Q101
	Repetitive Peak Reverse Voltage	1.2 kV
	Total Capacitive Charge	62 nC

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100080
Schedule B:	8541100080

In Stock : 54450.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 63 Weeks

Price for: Each

Quantity:

Min:450 Mult:450

USD $:

450+

$7.06667

900+

$6.9281

1800+

$6.8299

3600+

$6.73444

7200+

$6.625
