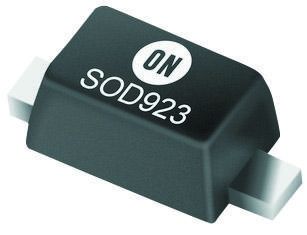

ESD9B3.3ST5G
TVS Diode, ESD9B Series
Click image to enlarge
Manufacturer:onsemi
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: ESD9B3.3ST5G
Secondary Manufacturer Part#: ESD9B3.3ST5G
-
RoHS 10 Compliant -
Tariff Charges
The ESD9B3.3ST5G is a Transient Voltage Suppressor Diode designed to protect voltage sensitive components from ESD. It has excellent clamping capability, low leakage and fast response time provide best in class protection on designs that are exposed to ESD. It is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium.
- 15pF Low capacitance
- Low clamping voltage
- Low leakage
- 1ns Response time
- IEC61000-4-2 Level-4 ESD protection
- AEC-Q101 qualified and PPAP capable
- -55 to 150°C Operating junction temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5 V | ||
| 15 pF | ||
| 11.5 V | ||
| SOD-923 | ||
| Bidirectional | ||
| Surface Mount | ||
| 1 | ||
| 2 | ||
| 1 | ||
| 150 °C | ||
| -55 °C | ||
| 3.3 V | ||
| 300 mW | ||
| ESD9B Series | ||
| 100 nA | ||
| 3.3 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100050 |
| Schedule B: | 8541100080 |
