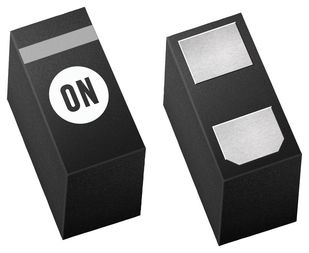

ESD7381MUT5G
ESD Protection Diodes, Low Capacitance, Unidirectional ESDLC3 Low Cap unidirectional ESD protection in 0201 DFN. ONSSPCPRTCNQK3C1V;
-
RoHS 10 Compliant -
Tariff Charges
ESD7381MUT5G is a ESD protection diode where micro packaged diode for ESD protection. It is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications. Typical applications include RF signal ESD protection, RF switching, PA, and antenna ESD protection and near field communications.
- Reverse working voltage is 3.3V
- Reverse leakage current 1nA
- Ultra-low capacitance of 0.37pF
- Low clamping voltage
- Small body outline dimension is 0.60mm x 0.30mm
- Low body height of 0.3mm
- Insertion loss of 0.030dBm, response time is 1ns, low dynamic resistance is 1
- IEC61000-4-2 Level 4 ESD protection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5 V | ||
| 0.55 pF | ||
| 10 V | ||
| X3DFN | ||
| Unidirectional | ||
| Surface Mount | ||
| 1 | ||
| 2 | ||
| 1 | ||
| 125 °C | ||
| -40 °C | ||
| 3.3 V | ||
| 27 W | ||
| 250 mW | ||
| 50 nA | ||
| 3.3 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100050 |
| Schedule B: | 8541100050 |
Ships
in 1 bus. day
