ESD7016MUTAG
ESD Protection Diode, Low Capacitance
Click image to enlarge
Manufacturer:onsemi
Product Category:
Diodes, ESD Protection Devices
Avnet Manufacturer Part #: ESD7016MUTAG
-
RoHS 10 Compliant -
Tariff Charges

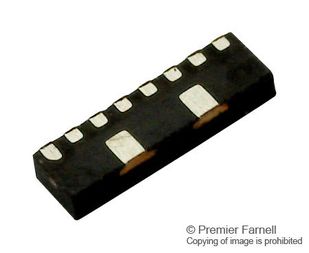

ESD7016MUTAG is a ESD protection diode in an 8 pin uDFN package. The ESD7016 surge protection is specifically designed to protect USB3.0 interfaces by integrating two Superspeed pairs, D+, D-, and Vbus lines into a single protection product. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace length necessary to maintain consistent impedance between high speed differential lines.
- Reverse working voltage is 5V
- Breakdown voltage is 5.5V
- Reverse leakage current is 1µA
- Low capacitance (0.15pF typical, I/O to GND)
- Protection for IEC 61000-4-2 (Level 4) standards
- Low ESD clamping voltage
- Operating junction temperature range from -55 to +125°C
