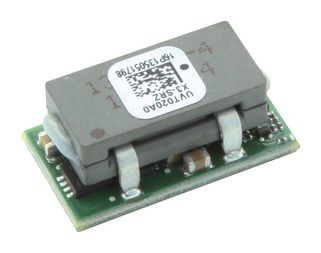

UVT020A0X3-SRZ
Non Isolated Board Mount DC/DC Converter, DOSA, Open Frame, 110 W, 600 mV, 5.5 V, 20 A, 3 V, 14.4 V, Adjustable, Programmable
-
RoHS 10 Compliant -
Tariff Charges
The UVT020A0X3-SRZ is a 1-output 110W surface-mount non-isolated DC/DC Power Module delivers up to 20A of output current. This DC/DC converter operate over a wide range of input voltage from 3 to 14.4VDC and provide a precisely regulated output voltage from 0.6 to 5.5VDC, programmable via an external resistor. Features include remote ON/OFF, adjustable output voltage, over current and over-temperature protection. The Tunable Loop™ feature allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on cost and PWB area.
- DOSA based
- Tunable Loop to optimize dynamic output voltage response
- Power good signal
- Fixed switching frequency with capability of external synchronization
- Output over current protection (non-latching)
- Over-temperature protection
- Remote ON/OFF
- Ability to sink and source current
- Cost efficient open frame design
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Adjustable, Programmable | ||
| DOSA, Open Frame | ||
| 14.4 V | ||
| 3 V | ||
| -40 to 85 °C | ||
| 20 A | ||
| 20 A | ||
| 110 W | ||
| 0.6 to 5.5 V | ||
| 5.5 V | ||
| 600 mV | ||
| Industrial & ITE | ||
| 20.32 mm | ||
| 20.32 x 11.43 x 8.5 mm | ||
| 8.5 mm | ||
| 11.43 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504408500 |
| Schedule B: | 8504408500 |
Factory Lead Time:
