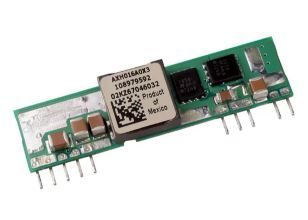

ATA016A0X43-SRZ

Austin SuperLynxTM II 12V SIP (single in-line package) power modules are non-isolated dc-dc converters that can deliver up to 16A of output current with full load efficiency of 92% at 3.3V output. These modules provide a precisely regulated output voltage programmable via an external resistor from 0.75Vdc to 5.0Vdc over a wide range of input voltage (VIN = 8.3 – 14Vdc). Austin SuperLynxTM II has a sequencing feature, EZ-SEQUENCETM that enable designers to implement various types of output voltage sequencing when powering multiple modules on board. Their open-frame construction and small footprint enable designers to develop cost- and space-efficient solutions.

• Compliant to RoHS EU Directive 2011/65/EU (-Z versions)
• Compliant to RoHS EU Directive 2011/65/EU under exemption 7b (Lead solder exemption). Exemption 7b will expire after June 1, 2016 at which time this product will no longer be RoHS compliant (non-Z versions)
• Flexible output voltage sequencing EZ-SEQUENCETM
• Delivers up to 16A output current
• High efficiency – 92% at 3.3V full load (VIN = 12.0V)
• Small size and low profile: 50.8 mm x 12.7 mm x 8.1 mm (2.00 in x 0.5 in x 0.32 in)
• Low output ripple and noise
• Constant switching frequency (300KHz)
• High Reliability: Calculated MTBF = 9.2M hours at 25oC Full-load
• Programmable Output voltage
• Line Regulation: 0.3% (typical)
• Load Regulation: 0.4% (typical)
• Temperature Regulation: 0.4 % (typical)
• Remote On/Off
• Remote Sense
• Output overcurrent protection (non-latching)
• Wide operating temperature range (-40°C to 85
