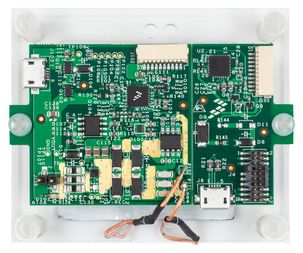

WPR1500-LDO

WPR1500-LDO is a medium-power receiver V2.1 reference design. It supports 15W, it is built according to the WPC Qi V1.2.2 specification, and has the capability to support future standards. It is a low-cost reference solution that can be easy customized through the FreeMASTER.

• Compliance with the medium power WPC Qi V1.2.2 specification
• Input power (3.5V to 20V AC peak) from the transmitter through the receiver coil
• Output power of 15W (5V at 3A)
• Support of FSK communication signals from the medium power transmitter
• Hardware protection of rectifier voltage, output voltage and output current
• Small PCB size (40mm × 40mm)
• Freehost tool to enable customization and calibration
