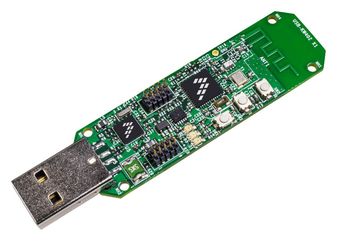

USB-KW40Z
Development Board, MKW40Z160/MK22FN512, Bluetooth Low Energy/IEEE 802.15.4 Packet Sniffer USB Dongle
Click image to enlarge
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: USB-KW40Z
Secondary Manufacturer Part#: USB-KW40Z
-
RoHS 10 Compliant -
Tariff Charges
USB-KW40Z is a Bluetooth low energy/IEEE® 802.15.4 packet sniffer USB dongle for Kinetis® KW40Z/30Z/20Z MCUs. This is a development platform enabled by the Kinetis® W series KW40Z/30Z/20Z (KW40Z) family built on the Arm® Cortex®-M0+ processor in a convenient USB dongle form factor. The USB-KW40Z can be used as a Bluetooth® Smart/Bluetooth® Low Energy and/or IEEE® 802.15.4 packet sniffer or development board. Packet sniffers are essential for wireless network development allowing over-the-air traffic monitoring.
- Supports MKW40Z160VHT4, MKW30Z160VHM4, MKW20Z160VHT4 Kinetis® W MCUs
- High-performance 2.4 GHz transceiver supporting Bluetooth® Low Energy v4.1 and IEEE 802.15.4-2011
- (-)91dBm Bluetooth low energy and -102dBm 802.15.4 receive sensitivity
- Up to +5dBm programmable transmit output power
- 6.5mA / 8.4mA Rx/Tx power consumption (DC-to-DC enabled)
- Chip antenna
- Minimum number of matching components and external balun
- USB Type A connector
- OpenSDA debug interface
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Microcontroller Tools | ||
| No | ||
| No | ||
| Microcontroller Tools | ||
| Bluetooth |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | 5A992.C |
| HTSN: | 8471801000 |
| Schedule B: | 8471801000 |
Factory Lead Time:
