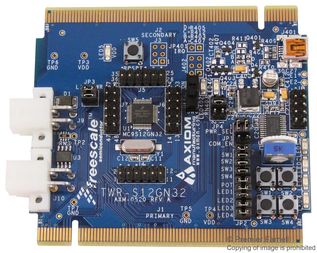

TWR-S12GN32

The TWR-S12GN32 is a MC9S12GN32 a Automotive 16bit tower system module. An integrated open source BDM, software tools, and examples provided with the development board make application development and debug quick and easy. All MCU signals are available on one or both edge connectors. An IO ring around the MCU also provided easy access to all signals. The tower system module operates as a standalone debug tool and can also be combined and used as part of the modular tower system development platform.

• S12GN32 series microcontroller (48pin LQFP)
• On board JTAG connection via open source OSBDM circuit using the MPC9S08JM microcontroller
• High speed CAN interface
• LIN interface
• Potentiometer with LP filter
• LED indicators
• RS232 serial communication interface
