TWR-K65F180M

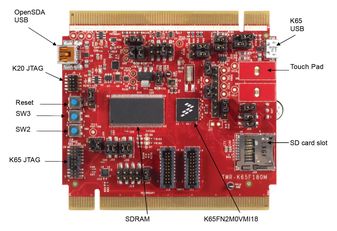

The TWR-K65F180M is a Tower System Module for the Kinetis K26, K65 and K66 180MHz 32-bit ARM cortex-M4 microcontrollers. The board features the Kinetis MK65FN2M0VMI18 low-power MCU with 2MB flash, 256kB SRAM, SDRAM controller, HS USB and Ethernet MAC. The board operates as a standalone debug tool and can also be combined and used as part of the modular tower system development platform.

• Dual-role USB interface with micro-AB USB connector
• On-board open-standard serial and debug adaptor (OpenSDA)
• General-purpose tower plug-in (TWRPI) socket
• Support of standalone high speed USB device and host
• Three-axis accelerometer (MMA8451Q)
• Potentiometer
• Four user-controlled status LEDs and two capacitive touch pads
• Two mechanical push buttons for GPIO interrupt and MCU reset
• On-board 64Mbit SDRAM (32-bit width) connected to the MCU's SDRAM controller
• SD card socket and coin cell battery holder
• Board power select from 3.3 or 1.8V MCU operation
• Software support and application development is offered through the Kinetis software development kit
