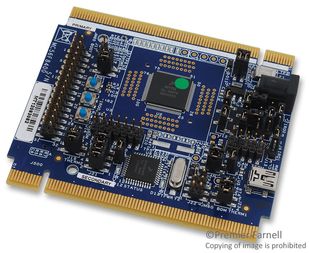

TWR-12311-KIT-NA
MC12311 Sub-1GHz Wireless Node Solution Tower Kit
Click image to enlarge
Manufacturer:NXP
Product Category:
Communication & Networking, Optical Transceivers, Other Optical Transceivers
Avnet Manufacturer Part #: TWR-12311-KIT-NA
Secondary Manufacturer Part#: TWR-12311-KIT-NA
-
RoHS 10 Compliant -
Tariff Charges
Powered by the low-power S08QE 8-bit microcontroller, the MC12311 embeds a rich set of peripherals with a high-performance sub-1 GHz radio, capable of operating over a wide frequency range including 315, 433, 470, 868, 915, 928 and 960 MHz in the license-free industrial, scientific and medical (ISM) frequency bands. This configuration allows users to minimize the use of external components.
- High sensitivity: down to -120 dBm at 1.2 kbps
- Low current: Rx = 16mA, 100nA register r
- Programmable output : -18 to +17 dBm in 1 dB steps
- FSK, GFSK, MSK, GMSK and OOK modulations with a bit rates up to 300 kbps in FSK
- Packet engine with CRC, AES-128 encryption and 66-byte FIFO
- Built-in temperature sensor and low battery indicator
Microcontroller Features
- 8-Bit S08 CPU: up to 50 MHz
- 32 KB flash and 2 KB RAM
- Multiple low-power modes
- In-circuit debug and flash programming available via on-chip background debug module (BDM)
- System protection features
- Programmable low voltage interrupt (LVI)
- Optional watchdog timer (COP)
Peripherals
- Analog-to-digital converter (ADC): 10-channel, 12-bit resolution
- Two analog comparators (ACMPx)
- Two serial communications interface (SCI) modules
- I2C: Up to 100
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1 | ||
| 1 | ||
| No | ||
| Transceiver |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | 5A002.A.1 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
