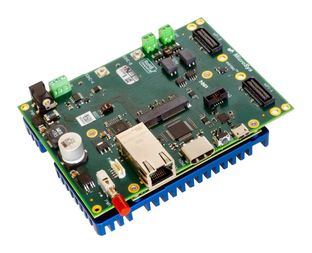

SBC-S32V234
Single Board Computer, MPX-S32V SoM, Integrated Cooling, ADAS Development
Click image to enlarge
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: SBC-S32V234
Secondary Manufacturer Part#: 33AC4455
-
RoHS 10 Compliant -
Tariff Charges
S32V234 vision and sensor fusion Evaluation-board for prototyping and development. This product is designed for high-performance, safe computation-intensive applications such as automotive front vision, surround vision and sensor fusion. S32V processors offer two Evaluation-board options: SBC-S32V234 and S32V234-EVB2 they are similar in functionality but S32V234-EVB2 offers additional peripheral connections and multiple communication connectors for FlexRay, LIN and more.
- S32V234 MPU with Linux BSP for SBC-S32V234
- Video input (2 x MIPI-CSI2)
- Video output (RGB to HDMI converter)
- Gigabit Ethernet
- 2GB DDR memory plus SD card slot and 16GB EMMC for NVM
- 1x PCIE 2.0 and 2 user LEDs
- 2 x CAN, 1 x LIN and 1 x UART
- Up to 8 ADC channels
- 5 and 12V power supply connector
- 10 pin JTAG debug connector
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Processor Tools | ||
| HDMI Output|HDMI Input | ||
| Yes | ||
| No | ||
| LIN|UART|JTAG | ||
| 2 GB | ||
| DDR | ||
| 2 | ||
| 1x PCIex1 | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | 5A992 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
