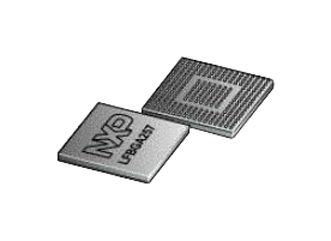

S32K344EHT1VMMST

S32K344EHT1VMMST is a S32K3-family 32bit microcontroller. It features a hardware security engine (HSE) with NXP firmware, enables firmware over-the-air (FOTA) updates, and includes ISO 26262 compliant Real-Time Drivers (RTD) suitable for both AUTOSAR® and non-AUTOSAR applications. It further extends the highly-scalable portfolio of Arm ® Cortex ® - M0+/M4F S32K1xx chips in the automotive industry with the Arm Cortex-M7 core at a higher frequency, more memory, ASIL-B and D rating and advanced security module. With a focus on automotive environment robustness, the S32K3xx product series device is well suited to a wide range of applications in electrical harsh environments and is optimized for cost-sensitive applications offering a new, space-saving package. It shares common peripherals and pin-out, allowing developers to migrate easily within a chip series or among other chip series to take advantage of more memory or feature integration.

• FOTA, A/B firmware swap with zero downtime, rollback support and automatic address translation
• 2-bit 1Msps ADCs, 16-bit eMIOS timers with logic control unit for motor control
• Low power run and standby modes, fast wake-up, clock and power gating
• Operating voltage range from 2.97V to 5.5V
• 4MB program flash memory, 128KB data flash memory
• 512KB (incl. 192KB TCM) total RAM, 32KB standby RAM
• 160MHz frequency, 32 DMA channels
• Temperature rating range from -40°C to 105°C
• 257-pin BGA package
