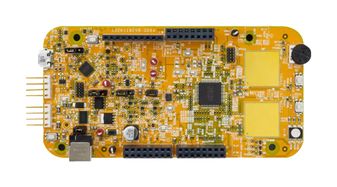

S32K118EVB2Q048

S32K118EVB2Q048 is a low-cost evaluation and development board for general-purpose industrial and automotive applications. Based on the 32bit Arm® Cortex®-M0+ S32K11 MCU, the S32K118EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options. The S32K118EVB integrates a security module complying Secure Hardware Extension (SHE) specification for quick application prototyping and demonstration.

• S32K118 evaluation board for general purpose automotive applications
• TJA1027 LIN 2.2A/SAE J2602 transceiver
• UJA1169TK mini high-speed CAN system basis chip
• 32bit Arm® Cortex®-M0+ based S32K118 microcontroller for general purpose
• OpenSDA: serial and debug adapter with support for several industry-standard debug interfaces
• Easy access to the MCU I/O header pins for prototyping
• Flexible power supply options of micro USB or external 12V supply
• On-board connectivity for CAN, LIN, UART/SCI interfaces
• Arduino® UNO pint-out compatible with expansion “shieldâ€? support compatibility
• 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
