RD9Z1-638BJBEVM

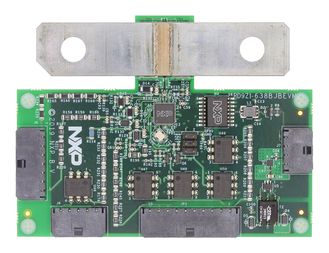

RD9Z1-638BJBEVM is a hardware tool for evaluation and development and is ideal for rapid prototyping of high voltage battery junction box (HV-BJB) in electronic vehicles. This board evaluates the features of the RD9Z1-638BJBEVM device and allows the user to connect to the power distribution unit (PDU) for voltage, current, temperature sensing and the contactor status diagnostic. The RD9Z1-638BJBEVM reference design can help accelerate your project development. It is a flexible, standalone function board with high integration, a smaller size and e-car and e-bus compatibility.

• Power supply input from 5V to 12V
• Up to seven voltage sensing channels for high voltage measurement
• One current sensing channel to measure the charge current and discharge current
• One temperature sensing channel to measure shunt resistor temperature for calibration
• Integrated insulation resistance measurement
• One isolated CAN communication channel to BMU/VCU
• Kit Contents: Evaluation board in an antistatic bag, 10-pin high-voltage connector cable, 7-pin high-voltage connector cable, 5-pin high-voltage connector cable, 4-pin low-voltage connector cable and quick start guide.
