PN7150B0HN/C11002E

PN7150B0HN/C11002E is a high performance NFC controller with integrated firmware, supporting all NFC Forum modes. Plug´n play and high-performance full NFC solution PN7150 is a full NFC controller solution with integrated firmware and NCI interface designed for contactless communication at 13.56MHz. It is compatible with NFC forum requirements. PN7150 embeds a new generation RF contactless front-end supporting various transmission modes according to NFCIP-1 and NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE Classic IC-based card and FeliCa card specifications. It embeds an Arm Cortex-M0 MCU core loaded with the integrated firmware supporting the NCI 1.0 host communication. It also allows to provide a higher output power by supplying the transmitter output stage from 3.0V to 4.75V. The contactless front-end design brings a major performance step-up with on one hand a higher sensitivity and on the other hand the capability to work in active load modulation communication.

• Arm Cortex-M0 microcontroller core
• Highly integrated demodulator and decoder
• Buffered output drivers to connect an antenna with minimum number of external components
• Integrated RF level detector, integrated polling loop for automatic device discovery
• Integrated power management unit
• Automatic wake-up via RF field, internal timer and I2C-bus interface
• Integrated non-volatile memory to store data and executable code for customization

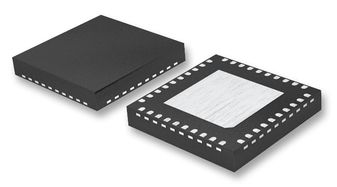

• Available in a 40 pin HVQFN package
• Ambient temperature range from -30 to +85°C
