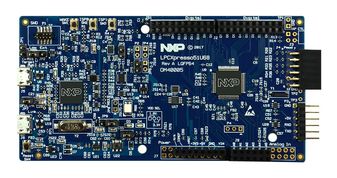

OM40005UL

LPCXpresso51U68 board for the LPC51U68 MCUs. It provides a powerful and flexible development system for NXP's Arm® Cortex®-M family of MCUs. The LPCXpresso51U68 board has been designed to enable evaluation of and prototyping with the LPC51U68 MCU leveraging the high-performance Cortex-M0+ core, power-efficiency and cost sensitive capabilities provided by the MCU device.

• On-board, USB based, Link2 debug probe with Arm’s CMSIS-DAP and SEGGER J-Link protocol options
• Link2 probe can be used with on-board LPC51U68 or external target
• Support for external debug probes
• Tri-colour LED
• Expansion options based on Arduino™ UNO and PMod™, plus additional expansion port pins
• On-board 1.8/3.3V or external power supply options
• Built-in power consumption measurement
• UART, I2C and SPI port bridging from LPC51U68 target to USB via the on-board debug probe
• FTDI UART connector
